BDX-30 Wood moisture meter with EDGE app

Moisture meter

Name: BDX-30 Wood moisture meter with EDGE app
Material: Wood, Flooring, Concrete, Drywall, Plaster, EIFS, Roofing, Insulation
Mc: Wood (Douglas Fir) 6%-60% Delmhorst’s exclusive calibrated drywall scale 0.1%-6% Reference 1-100 on a relative basis for non-wood materials
Calibrations: Wood, Gypsum, 0-100 reference scale
Overview The Delmhorst EDGE™ app offers Timestamp and geotag Data export to .csv format Save unlimited readings Add notes to each location Designate readings to a location/room or dehumidifier View and filter all readings
Your Benefits: Large, custom display with auto backlight - easy to read under all conditions Modern case design with large, tactile buttons and E-Z grip handle On-screen statistics for up to 100 readings saved to the meter High, Low, Average, Standard Deviation Measuring Range: Wood (Douglas Fir) 6%-60% Drywall 0.1%-6% Reference 1-100 Wood temperature correction (°F / °C) Select from 37 wood species and materials Bluetooth® connectivity to EDGE® app Color-coded LED’s – adjustable through EDGE® app Alarm set point - alerts to user-selected MC level Internal calibration check "Low Batt" warning with audio Auto off timer. Set to 1m, 4m or 10m Compatible with all Delmhorst electrodes Power: 2x AA Alkaline batteries Temperature Correction Range: 0°-255°F (-18°-124°C) QR code on meter for easy access to support materials and meter registration Size: meter only 8.65in x 2.85in x 1.60in (21.97cm x 7.24cm x 4.06cm) Weight: meter only - 8.6 (244gm) Hard plastic carrying case included 2-year warranty on manufacturer’s defects. Bonus warranty with on-line registration
Special Packages: The BDX-30, purchased individually, includes the BDX-30 meter, 324CAS-0111 carrying case, and two (2) spare 2498/A-100 pins. Order as BDX-30W/CS The Behind the Wall Package includes the BDX-30 meter, 324CAS-0112 carrying case, 21-E electrode, and two (2) spare 2498/A-100 contact pins. Order as BDX-30/P01 The Wood Flooring Package includes the BDX-30 meter, 324CAS-0113 carrying case, 26-ES electrode, and ten (10) spare 496 insulated contact pins. Order as BDX-30/P02 The Contractor’s Package includes the BDX-30 meter, 324CAS-0113 carrying case, 21-E electrode, 26-ES electrode, HP-1 hole punch, two spare 608/001 contact pins, and ten (10) spare 496 contact pins. Order as BDX-30/P03

BDX-30 Wood moisture meter with EDGE app

Click to enlarge!

Electrodes

	26-ES Wood hammer Hammer electrode. The 496 contact pins that come with the 26-ES penetrate 29mm (1⅛”) and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. Also available as the 26-ED, which includes gauge to measure pin penetration depth. Benefits This hammer electrode will easily check high density hardwood that short pins are unable to penetrate. It will also easily penetrate through flooring to plywood sub-floor or concrete.
	2-E Building materials Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications. 2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration. Benefits Home inspector: Use on wood joists and drywall. Paper producer: Use on curved surfaces such as cardboard and paper tubes. Woodworker: Use on timber, poles, and veneer.
	19-E Wood Blade type electrode. Available blade lengths: 125mm (5”) 300mm (12”) 450mm (18”) Benefits Electrode designed for measuring in wood pellets, shavings, tree bark, etc.
	2-E/split NEW: Flexible electrode makes moisture testing at impossible to reach places possible. Simply attach any length metal “probe” to the alligator clips on the end of the 2-E/Split Benefits Easily test under cabinets, through drywall, or any other hard to reach area
	15-E Wood Pin type, with two rows of four pins each, maximum penetration 3mm (⅛"). Penetration can be adjusted according to stock thickness by means of gauge block Benefits Used for veneer
	22-E for building materials Comes with A-111 uninsulated contact pins for 7/16" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration.22-E is also available as the 22-ET with a tapped handle for hard to reach areas. Benefits For use on plaster, masonry and wood

BDX-30 Wood moisture meter with EDGE app

Accessoires

	MCS-1 Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy.
	2498/A-100 Uninsulated pin and retainer with 8mm (5/16") penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 38mm (1 ½”), concrete and gypsum.
	496 496 contact pins are insulated except at the tips, and measure 5cm (2") overall with 29mm (1 1/8") penetration. Standard on the 26-ES. Used to check wood up to 13cm.

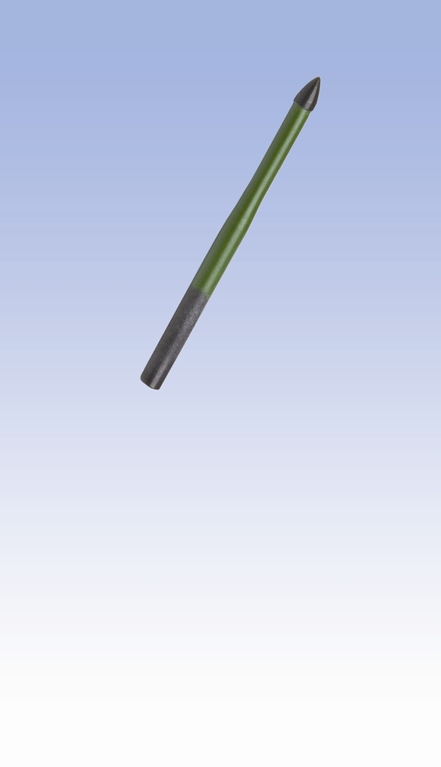

	1849 An alternate to the 496 pin for the 26-ES, the 1849 is a 38mm (1½”) insulated pin with 13mm (1/2") penetration. The 1849 is suitable for wood up to 5cm (2") thick.
	A-111 Another alternative to the 496, the A-111 is an uninsulated contact pin measures 36mm (1 7/16”) and has 1,3cm (1/2") penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 5cm (2") thick.
	632/4 Retainer used to hold contact pins in place. Used with # 496, # 1849, and # A-111 pins.

BDX-30 Wood moisture meter with EDGE app

Downloads & Videos

Manual:
Brochure:
