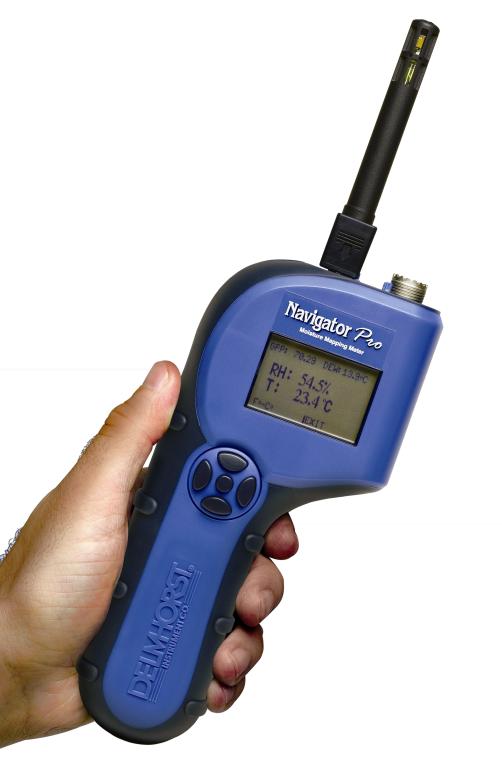

NavigatorPro building materials moisture meter

Moisture meter

Name: NavigatorPro building materials moisture meter
Material: Floorings, Floors, Wooden floors, Wood, walls, drywall, concrete, concrete slab, insulation, plaster, building materials
Mc: 5-60% MC wood scale 0.1-6% drywall scale 0-100 pin mode and 0-300 scan mode (Reference scales for non-wood building materials)
Calibrations: Wood, Drywall
Overview Meeting the restoration contractor's demand for detailed, accurate, and accessible information. The Navigator Pro moisture meter features advanced job definition that organizes readings of the floor, wall, and ceiling in affected rooms. Stored readings can be downloaded to a spreadsheet on your PC, providing clear, complete documentation of every job. With features you can't find anywhere else, plus Delmhorst's renowned quality and service, the Navigator Pro will guide you from wet to dry! Navigator Pro can be used to check moisture in drywall, insulation, wood, concrete, and plaster. It traces leaks to find exterior moisture and dry rot.
Your Benefits: Simplified menu options in Basic Mode for quick and easy use Job definition of up to 5 jobs with unique Job ID numbers in Enhanced Mode Data grouping by specific rooms, with up to 32 rooms per job Pin mode: • 5%-60% MC wood scale • 0-100 numerical reference scale • 0.1% - 6% drywall scale Scan Mode: 0-300 numerical reference scale Thermo-hygrometer: • Measures temp/RH • Calculates GPP/dew point • Fast response time Store up to 1400 readings with date, time, room, and location stamp View stored readings on screen Optional software lets you download readings to your computer and generate Excel reports Size: 22x9x4,5cm (8 ½x3 3/8x1¾”) Weight: 312gr. (11 oz.) Rugged construction ensures years of reliable use Sturdy plastic carrying case 1-year warranty
Special Packages: Navigator Pro Basic Package: Includes meter with RH/T sensor, carrying case, 2-E electrode, and PC/KIT software application program Navigator Pro Restoration Package: Includes meter with RH/T sensor, 26-ES electrode, 2-E electrode, 21-E electrode, PC/KIT software application program, (1) RHT-C1 cable and carrying case Great for the restoration contractor who needs to provide documentation

NavigatorPro building materials moisture meter

Click to enlarge!

Electrodes

	26-ES Wood hammer Hammer electrode. The 496 contact pins that come with the 26-ES penetrate 29mm (1⅛”) and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. Also available as the 26-ED, which includes gauge to measure pin penetration depth. Benefits This hammer electrode will easily check high density hardwood that short pins are unable to penetrate. It will also easily penetrate through flooring to plywood sub-floor or concrete.
	2-E Building materials Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications. 2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration. Benefits Home inspector: Use on wood joists and drywall. Paper producer: Use on curved surfaces such as cardboard and paper tubes. Woodworker: Use on timber, poles, and veneer.
	2-E/split NEW: Flexible electrode makes moisture testing at impossible to reach places possible. Simply attach any length metal “probe” to the alligator clips on the end of the 2-E/Split Benefits Easily test under cabinets, through drywall, or any other hard to reach area
	15-E Wood Pin type, with two rows of four pins each, maximum penetration 3mm (⅛"). Penetration can be adjusted according to stock thickness by means of gauge block Benefits Used for veneer
	22-E for building materials Comes with A-111 uninsulated contact pins for 7/16" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration.22-E is also available as the 22-ET with a tapped handle for hard to reach areas. Benefits For use on plaster, masonry and wood
	21-E Long pin type. The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 8.25cm (3¼"). The 21-E is also available as 21-E/001 with 15.25cm (6") penetration, or as the 21-ET with a tapped handle for hard to reach areas. Benefits For use on roofs, insulation, or EIFS
	19-E/STC Features two 13cm (5'') long blades, bent to a 35° angle, and coated in Teflon except for the tips Benefits Great for checking behind trim and baseboard molding

NavigatorPro building materials moisture meter

Accessoires

	MCS-1 Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy.
	RH/T-S1 Detachable relative humidity/temperature sensor that is included with Total Check and HT-4000F. Can be used to obtain ambient RH/T readings, or for performing tests on concrete. RH/T-S3: Can be used to perform tests on concrete according ASTM F-2170 norm.
	RH/T-C1 Extension cable, connects to the RH/T-S sensor, allowing you to easily view your meter’s screen while performing tests on concrete.
	PC/KIT/Nav Enables you to download stored readings from the meter to a PC via infrared linking. This software will enable you to: Export job data to Excel Customize printing options View readings and stats in the application program Save and print individual or group job readings Customize job title View data in Celsius or Fahrenheit Append notes to each job Generate graphical histogram All these features are provided in a easy to use GUI interface, and are compatible with Windows 95/98/ME/2000/XP/Vista/7. The PC/KIT is included in several of our moisture meter packages, or may be ordered separately. It can be used with the Navigator Pro, RDM-3, RDM-3P and Total Check moisture meters.
	HP-1 Hole punch to make pilot holes in stucco to reduce pin damage.
	496 496 contact pins are insulated except at the tips, and measure 5cm (2") overall with 29mm (1 1/8") penetration. Standard on the 26-ES. Used to check wood up to 13cm.
	608 The 608 insulated contact pins measure 10cm (4") overall, and penetrate 8,25cm (3 1/4"). Standard on 21-E and 18-ES electrodes. Used on roofing, insulation, timber, poles, and EIFS.
	608/001 The 608/001 insulated contact pins measure 18cm (17") overall, and penetrate 15,25cm (6"). Alternative length to be used on 21-E and 18-ES electrodes. Used on roofing, insulation, timber, poles, and EIFS.
	A-111 Another alternative to the 496, the A-111 is an uninsulated contact pin measures 36mm (1 7/16”) and has 1,3cm (1/2") penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 5cm (2") thick.
	632/4 Retainer used to hold contact pins in place. Used with # 496, # 1849, and # A-111 pins.
	305RET-0021/4 Retainer used to hold contact pins in place. Used with pin #608 and pin #608/001.
