BDX-20 building materials moisture meter





Moisture meter

Name:
BDX-20 building materials moisture meter

Material:
Wood, Flooring, Concrete, Drywall, Plaster, EIFS, Roofing, Insulation

Mc:
  • Wood (Douglas Fir) 6%-60%
  • Drywall 0.1%-6%
  • Reference 1-100 on a relative basis for non-wood materials

Calibrations:
Wood, Gypsum, 0-100 referencde scale

Overview
The BDX-20 is the newest in the legendary “BD Series” pin meters for the building trades.  This rugged meter has an ergonomic design with an easy grip handle and large tactile buttons for comfort and usability.  Equipped with a custom, LCD display and intuitive user interface, users can quickly obtain accurate readings.  The BDX-20 will ensure maximum performance and reliability on every job.

Your Benefits:
  • Large, custom display with auto backlight - easy to read under all conditions
  • Modern case design with large, tactile buttons and E-Z grip handle
  • On-screen statistics for up to 100 readings saved to the meter
    • High, Low, Average, Standard Deviation

  • Measuring Range:
    • Wood (Douglas Fir) 6%-60%
    • Drywall 0.1%-6%
    • Reference 1-100

  • Wood temperature correction (°F / °C)
  • Alarm set point - alerts to user-selected MC level
  • Internal calibration check
  • "Low Batt" warning with audio
  • Auto off timer. Set to 1m, 4m or 10m
  • Compatible with all Delmhorst electrodes
  • Power: 2x AA Alkaline batteries
  • Temperature Correction Range: 0°-255°F (-18°-124°C)
  • QR code on meter for easy access to support materials and meter registration
  • Size: meter only 8.65in x 2.85in x 1.60in
  • (21.97cm x 7.24cm x 4.06cm)
  • Weight: meter only - 8.6 (244gm)
  • Hard plastic carrying case included
  • 2-year warranty on manufacturer’s defects.
  • Bonus warranty with on-line registration

Special Packages:

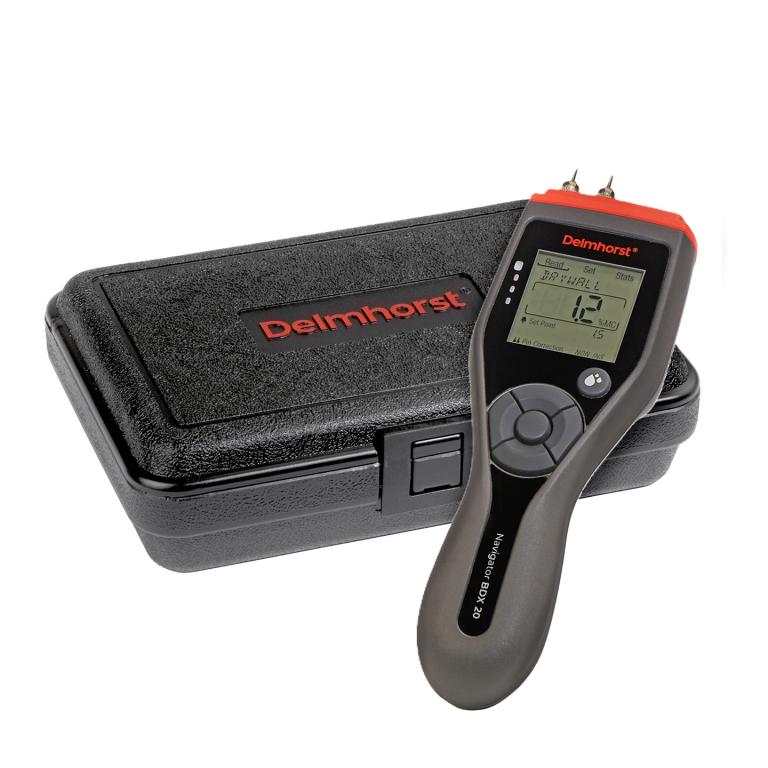

The BDX-20, purchased individually, includes the BDX-20 meter, 324CAS-0111 carrying case, and two (2) spare 2498/A-100 pins. Order as BDX-20W/CS

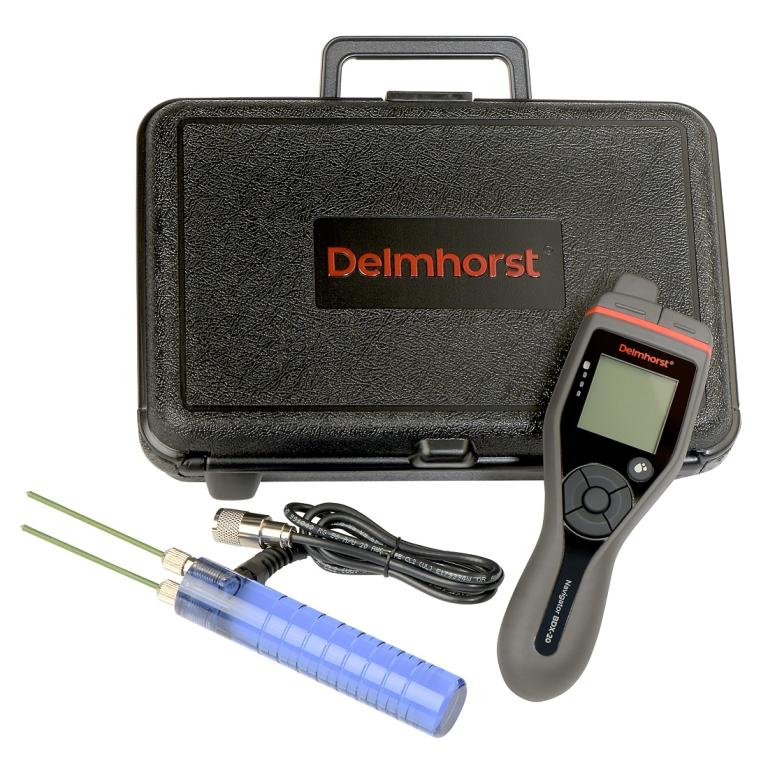

The Behind the Wall Package includes the BDX-20 meter, 324CAS-0112 carrying case, 21-E electrode, and two (2) spare 2498/A-100 contact pins. Order as BDX-20/P01

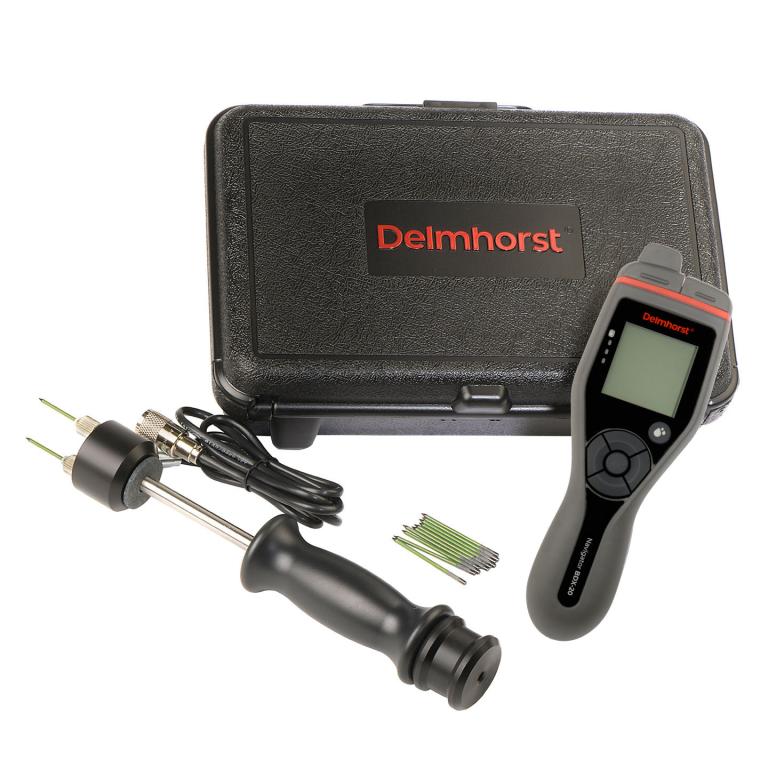

The BDX-20 package for flooring and wood, includes the BDX-20 meter, 324CAS-0112 carrying case, 26-ES hammer electrode, extra pins (10x 496, 2x 2498/A-100). Order as BDX-20/P02

BDX-20 building materials moisture meter

BDX-20W/CS moisture meter for building materials in small case BDX-20/P01 - behind the wall package BDX-20/P02 wood and flooring package Navigator Series
Click to enlarge!
Electrodes
26-ES Wood hammer
Hammer electrode. The 496 contact pins that come with the 26-ES penetrate 29mm (1⅛”) and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration.
Also available as the 26-ED, which includes gauge to measure pin penetration depth.

Benefits
This hammer electrode will easily check high density hardwood that short pins are unable to penetrate. It will also easily penetrate through flooring to plywood sub-floor or concrete.

2-E Building materials

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications.


2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.



Benefits
  • Home inspector: Use on wood joists and drywall.
  • Paper producer: Use on curved surfaces such as cardboard and paper tubes.
  • Woodworker: Use on timber, poles, and veneer.

19-E Wood
Blade type electrode.

Available blade lengths:
125mm (5”)
300mm (12”)
450mm (18”)

Benefits
Electrode designed for measuring in wood pellets, shavings, tree bark, etc.
15-E Wood
Pin type, with two rows of four pins each, maximum penetration 3mm (⅛"). Penetration can be adjusted according to stock thickness by means of gauge block

Benefits
Used for veneer
26-ES Flooring
The 496 contact pins that come with the 26-ES penetrate 29mm (1⅛”) and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration.

Also available as the 26-ED, which includes gauge to measure pin penetration depth.

Benefits
This hammer electrode will easily penetrate through flooring to plywood sub-floor or concrete.
BDX-20 building materials moisture meter

Accessoires
MCS-1
Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy.
2498/A-100
Uninsulated pin and retainer with 8mm (5/16") penetration.
Standard on all meters with built-in pins and the 2-E and 4-E electrodes.

Used on wood up to 38mm (1 ½”), concrete and gypsum.
496
496 contact pins are insulated except at the tips, and measure 5cm (2") overall with 29mm (1 1/8") penetration.
Standard on the 26-ES.

Used to check wood up to 13cm.
1849
An alternate to the 496 pin for the 26-ES, the 1849 is a 38mm (1½”) insulated pin with 13mm (1/2") penetration.

The 1849 is suitable for wood up to 5cm (2") thick.
608
The 608 insulated contact pins measure 10cm (4") overall, and penetrate 8,25cm (3 1/4").
Standard on 21-E and 18-ES electrodes.

Used on roofing, insulation, timber, poles, and EIFS.
608/001
The 608/001 insulated contact pins measure 18cm (17") overall, and penetrate 15,25cm (6").
Alternative length to be used on 21-E and 18-ES electrodes.

Used on roofing, insulation, timber, poles, and EIFS.
632/4
Retainer used to hold contact pins in place.

Used with # 496, # 1849, and # A-111 pins.
BDX-20 building materials moisture meter

Downloads & Videos
Manual:Download pdf
Brochure:Download pdf
