TechCheckPlus 2-in-1 wood moisture meter

Moisture meter

Name: TechCheckPlus 2-in-1 wood moisture meter
Material: Floorings, Floors, Wooden floors, Wood, walls, drywall, concrete, building materials
Mc: 6%-60% on wood 0.1%-6% on drywall (Delmhorst Exclusive Scale) 0–300 numerical reference scale for non-wood building materials
Calibrations: Wood, Drywall
Overview TechCheckPlus 2-in-1 meter is designed to scan and locate moisture levels in your wooden floor. Given the challenging conditions, it pays to have an easy-to-use moisture meter that you can depend on. The newly updated accurate TechCheck PLUS has all the great features you've come to expect, along with some new ones.
Your Benefits: Bright, clear digital display Pin mode: • 0.1% - 6% drywall scale, Delmhorst Exclusive • 6%-60% MC wood scale • Integral Contact pins mounted on top of meter provide 8mm (5∕16”) penetration • Built-in connector accepts any Delmhorst electrode Scan Mode: 0-300 numerical reference scale Spanish language option Built-in back-light makes reading in dark places a cinch Auto-shutoff timer saves battery life Audible, adjustable alarm alerts you when your pre-selected MC has been reached Operating Temperature: from -20° to +70°C Size: 22x9x4,5cm (8½x3⅜x1¾”) Weight: 312gr. (11 oz.) Rugged construction ensures years of reliable use Sturdy plastic carrying case 9V battery 1-year warranty

TechCheckPlus 2-in-1 wood moisture meter

Electrodes

	2-E Wood Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications: 2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration. Benefits Home inspector: Use on wood joists and drywall. Paper producer: Use on curved surfaces such as cardboard and paper tubes. Woodworker: Use on timber, poles, and veneer.
	15-E Wood Pin type, with two rows of four pins each, maximum penetration 3mm (⅛"). Penetration can be adjusted according to stock thickness by means of gauge block Benefits Used for veneer
	19-E/STC Features two 13cm (5'') long blades, bent to a 35° angle, and coated in Teflon except for the tips Benefits Great for checking behind trim and baseboard molding

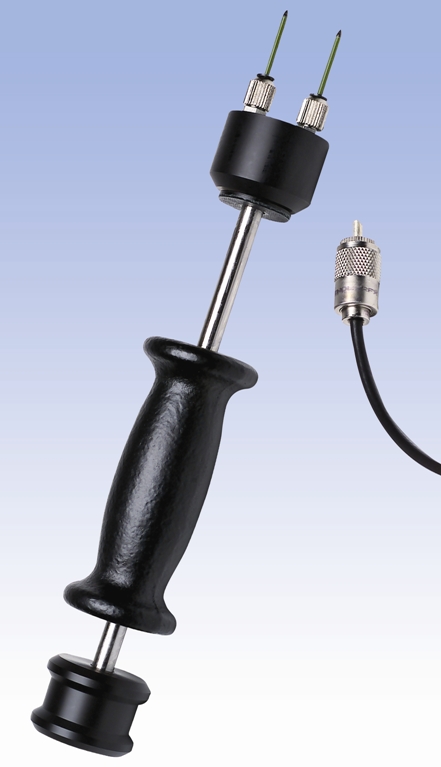

	26-ES Flooring The 496 contact pins that come with the 26-ES penetrate 29mm (1⅛”) and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. Also available as the 26-ED, which includes gauge to measure pin penetration depth. Benefits This hammer electrode will easily penetrate through flooring to plywood sub-floor or concrete.

TechCheckPlus 2-in-1 wood moisture meter

Accessoires

	MCS-1 Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy.
	496 496 contact pins are insulated except at the tips, and measure 5cm (2") overall with 29mm (1 1/8") penetration. Standard on the 26-ES. Used to check wood up to 13cm.
	1849 An alternate to the 496 pin for the 26-ES, the 1849 is a 38mm (1½”) insulated pin with 13mm (1/2") penetration. The 1849 is suitable for wood up to 5cm (2") thick.
	A-111 Another alternative to the 496, the A-111 is an uninsulated contact pin measures 36mm (1 7/16”) and has 1,3cm (1/2") penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 5cm (2") thick.
	632/4 Retainer used to hold contact pins in place. Used with # 496, # 1849, and # A-111 pins.
	305RET-0021/4 Retainer used to hold contact pins in place. Used with pin #608 and pin #608/001.
